Species Mass Transfer, Multiphase setup problems..?

Hi

I am trying to simulate multiphase flow. Specifically, my inlet is carbonated water, and my geometry is venturi (converging diverging nozzle shape). So, through nozzle, the pressure will change, and solubility will be also changed. So, I want to see the CO2 in carbonated water is undissolved from carbonated water, and escape to ambient air.

I am trying to use multiphase Eulerian, species transport model, mass transfer from species to species with Henry's Law.

I am setting up...

  • fluids
    • mixture: CO2 and water
    • mixture: CO2 and air
    • air
  • mass transfer
    •    mixture (CO2 and water): CO2 --> mixture (co2 and air): co2
    • in order to represent undissolved co2 from carbonated water

Is this right setup to represent this phenomenon?

I keep getting divergence in residual...it says it is detecting floating point....

Could  anyone give me some advice?

«13

Comments

  • taegyu87taegyu87 Member
    edited January 22

     FYI, I read these comments... and applied ....

    https://studentcommunity.ansys.com/thread/dissolved-oxygen-in-water-1/?order=all#comment-7f7e6c45-1b8d-41b4-863f-ab430089a6c0

    CO2 from mixture (water + CO2) --> CO2 from mixture (CO2 + dummy CO2)

    in order to imitate co2 escaping from carbonated water as pressure change through nozzle shape geometry.

  • RobRob UKForum Coordinator
    edited January 23

    What time step are you using?

  • taegyu87taegyu87 Member
    edited January 23

    1. I am using steady state condition. I am trying to add lift force with Tomiyama or 0.53 as a constant, but it keeps diverging at 80 iteration. Now, I am trying to solve it without lift force, and run for 3000 iteration. Then, I will add lift force back to the system. Should I use transient solution?

    2. I am thinking about using transient with 0.01 s time step if I need to use it. Should I use 0.001s or smaller?



  • taegyu87taegyu87 Member
    edited January 23

    Here is my setup and geometry.


    Top edge is inlet, and bottom edge is outlet. Mesh size is 0.00001m with triangle.

    Virtual Mass: not applied

    Drag: schiller-naumann

    Lift: not applied

    Surface Tension: constant=0.072

    Interfacial Area: ia-symmetric

    Mass Transfer is ....






    This is my setup for mass transfer.

    carb-water is mixture of water and co2, and undis-co2 is mixture of co2 and dummy co2.



    Inlet condition:

       carb-water: vel=4.5m/s, species: mass fraction of water =0.992

       undis-co2: vel=4.5m/s, species: mass fraction of co2=0.999, multiphase: volume fraction=0.001

    Outlet condition:

       air: back flow volume fraction =1



    And my calculation method and setup is...


  • taegyu87taegyu87 Member
    edited January 23

    The solution with transient 0.001 diverged.... and this is what fluent says...









  • RobRob UKForum Coordinator
    edited January 23

    How does the solution look just before it diverges? Also, if the backflow vf is all air, what's stopping the domain filling with air?

  • taegyu87taegyu87 Member
    edited January 23

    Thank you for getting back to me.

    So, here is the screenshot of current stage. For this case, I turn off the lift force to get better divergent.


  • taegyu87taegyu87 Member
    edited January 23

    I ran few more iteration and i got this error...

    Do yo know why i am getting this error and how to fix this?


  • DrAmineDrAmine GermanyForum Coordinator
    edited January 24

    You should reduce the case into the backbone settings: Why do you have three phases? Why turbulence per phase? You are putting a lot of complexities into this case where the most important thing is based on something which is not really ideal as it assumes ideal solution and Henry's law. Use single turbulence field, two phases ( I do not know why air in this system) and transient run.

  • taegyu87taegyu87 Member
    edited January 24

    Thank you for your comment.

    1. Why do you have three phases?What I eventually want to simulate when carbonated water pour into cup, how much CO2 is escaping. So, for that, I thought I should have mixture( water + CO2), CO2 (undissolved CO2 which is escaping to ambient), and ambient air.

    My original simulation is carbonated water is coming out from the nozzle at the top and pour down into the cup, and I was trying to observe CO2 escaping from carbonated water stream into water. That is why I am trying to add air into my system. Do you suggest other way in order to have only two phase? Is mixture (water+co2) and mixture( CO2+ air) able to represent my system?

    2. Why turbulence per phase? I thought this will help my simulation to be stabilized better. What do you suggest?

    3. I do not need to run with transient. I was running Pseudo transient setting..



    Could you please suggest some setting so that I can simplify my model?



    Thank you so much for your help!

  • DrAmineDrAmine GermanyForum Coordinator
    edited January 24

    1/Suggest two phases: water mixture (+dissolved CO2) + gaseous mixture (Air+CO2) If the mass transfer occurs at the free surface probably your will probably require an UDF or at least to smear the interface and use that builtin model. This depends on the initial state. If all phases are mixed together than you might use Henry's law built in Fluent.



    2/Single turbulence field

    3/Run transient

  • taegyu87taegyu87 Member
    edited January 24

    Thanks Amine.

    1. I will try two mixtures model. I do not have experience in writing UDF. I will start to study about it. Meanwhile, I will use builtin model. But can you specify what builtin model you are talking? Could you tell me some more details about the setting that I should do? I think initially all phases are mixed together very well, but i think they will not be mixed well as mass transfer phenomenon happening I think. So, in this case I should use Henry's law.. is it correct?



    2. I will use mixture or dispersed.



    3. I will run transient with 0.001 time step.



    I will try what you told me, and let you know what happens.



    Thank you for your help.

  • DrAmineDrAmine GermanyForum Coordinator
    edited January 24

    1/Henry's law is fine here (assuming ideal solution-...). I am talking about the case where you have stratified flows: gas over liquid. Here you probably need to write an UDF.

    2/ok

    3/ok

  • taegyu87taegyu87 Member
    edited January 24

    1. About the stratified flow... my inlet flow of mixture (water+co2) is carbonated water (co2 fully dissolved in water). Is my mixture setup of that correct? Or do I still need to write UDF for that?

  • DrAmineDrAmine GermanyForum Coordinator
    edited January 24

    You have a mixed flow at inlet. You need an UDF (probably) if you have a stratified flow: stratified flow regime is like this:



    Image result for stratified flow (Authors: Sketches of flow regimes for two-phase flow in a horizontal pipe. Source: Weisman, J. Two-phase flow patterns. Chapter 15 in Handbook of Fluids in Motion, Cheremisinoff N.P., Gupta R. 1983, Ann Arbor Science Publishers.)

  • taegyu87taegyu87 Member
    edited January 24

    I am running simulation as you told me to do. It is still running. I think it will take more than 48 hours. Also, it seems it is going to be diverged.


  • DrAmineDrAmine GermanyForum Coordinator
    edited January 27

    It does not look good. What is the initial state in your case? Add description of boundary conditions. Bad settings by the way un your Run Task Panel (why 200 iteration per time step? rather smaller time step sizes and just 10 iterations per time step).

  • taegyu87taegyu87 Member
    edited January 27

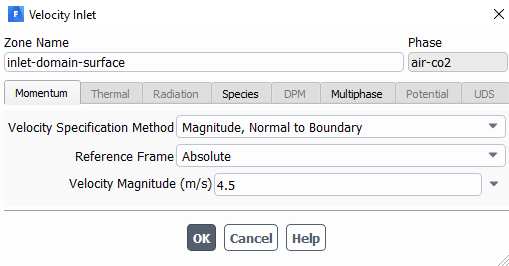

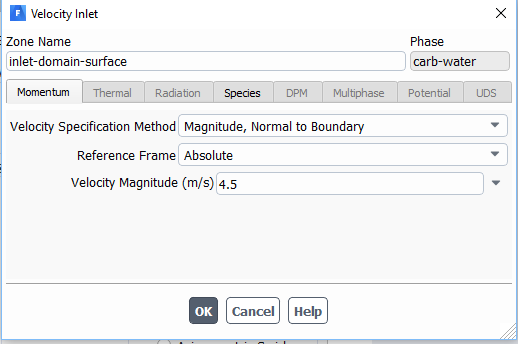

    1. my inlet conditions are...

    inlet: top surface:


    " alt="">carb water = mixture of CO2 + Water


    And also... as an initial seeding...


    " alt="">mixture of Air + CO2

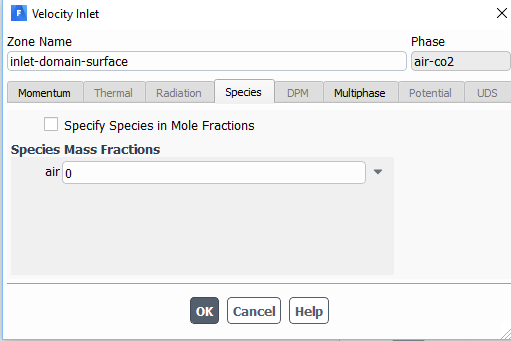

    " alt="">Since I only want co2 interaction...air mass frac = 0


  • DrAmineDrAmine GermanyForum Coordinator
    edited January 27

    Both Co2 components need to be solved via transport equations.



  • taegyu87taegyu87 Member
    edited January 27

    Amine,

    Do you mean that CO2 should be the secondary species in the mixture? Instead of adjusting air or water species mass fraction, do I need to adjust CO2 mass fraction at species tap? Is that what you mean?

    Thank you.
