How to find the total pressure gradient for a multiphase (liq-gas) bubble flow in a pipe?

Hello everyone.

My aim is to validate my CFD model by comparing the pressure gradient obtained from the simulation to semi-empirical equations derived by others. I have simplified the problem to a 2D-planar case. I am using the VOF model and the pipe has some inlet mass flow for both liquid and gas phases. In addition the pipe is open to the atmosphere at the top, and gravity is imposed over the pipe.

However, I am having trouble trying to find the total pressure gradient in a vertical multiphase pipe flow. Because there is pockets of gas throughout the pipe, the pressure is varying quite a lot (See image below for ref.)



Thank you  very much for reading. I am greatful for any comments or recommendations.

Regards,

Magnus

Comments

  • KremellaKremella Admin
    edited April 27

    Hello,

    You will need to create a custom field function to obtain the value of the pressure gradient. To create this, please use the 'User-Defined' tab. Please see the following screenshot.

    Once you have your definition, you should be able to use this function 'pressure_gradient' in your XY plot or contour plot as needed. Please note that the 'P' in the definition 'dP/dx' is the Static Pressure.

    Thanks.

    Best,

    Karthik

  • maggakahnmaggakahn Member
    edited April 27

    Hello, Karthik.

    Thank you for the quick reply!

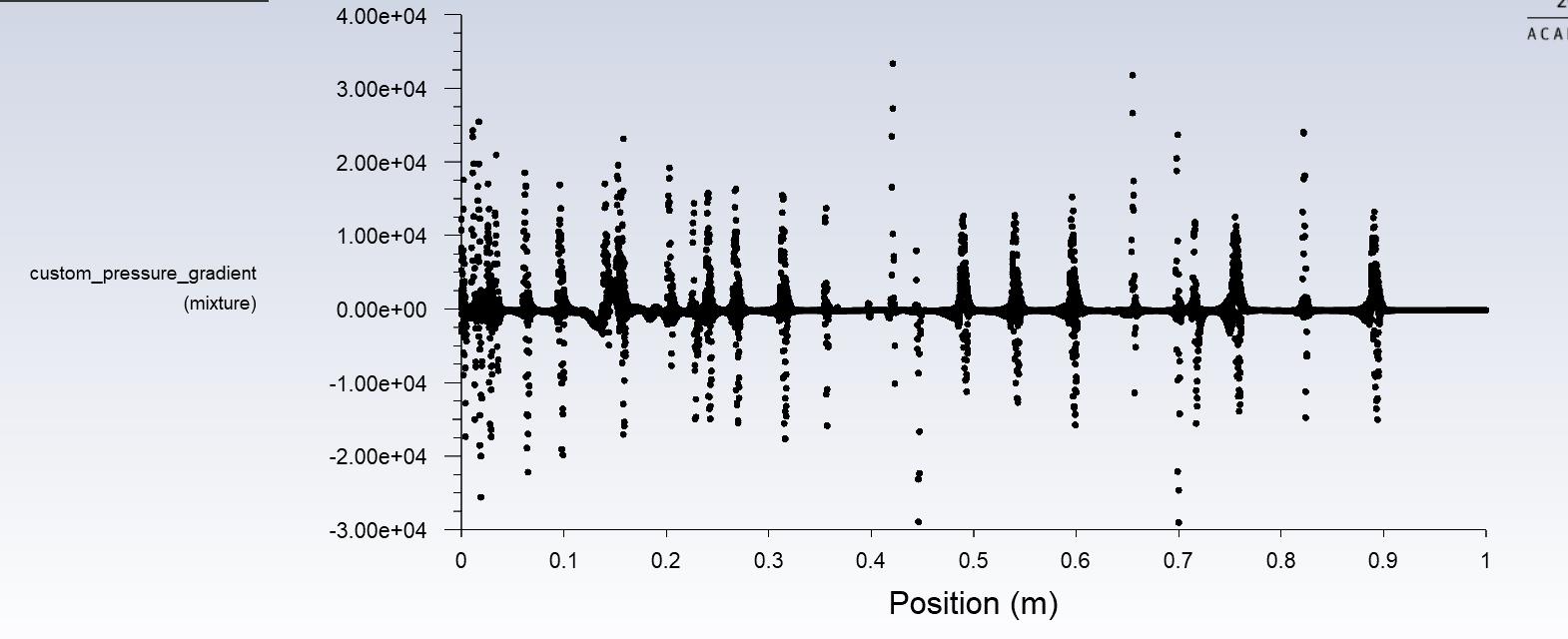

    However, I have tried to plot the dpdx as you said, and the results are quite messy unfortunately. As you can see from the figure below, the pressure gradient varies a lot. Therefore trying to figure out the real pressure gradient from lets say 0.8-1.0m of the pipe is not easy.

    Do you have any other recommendations?

    Thanks again,

    Magnus

  • KremellaKremella Admin
    edited April 27

    Hello,

    I'd recommend changing the range on your y-axis to see if you can make some sense of your data. You might want to exclude point which are showing these really high or low values. Perhaps, even write out this data so you can inspect these numbers.

    Thank you.

    Best,

    Karthik

  • maggakahnmaggakahn Member
    edited April 28

    Hello again, and thank you for your help!



    By changing the range on the y-axis i can see that the pressure gradient is fluctuating. See the screenshot below for ref. Do you know if there is a reason for why the pressure gradient is fluctuating this much? Or perhaps this is normal for multiphase bubble flow?

    I think i need a new method to figure out the pressure gradient for a distance delta L on the pipe. For example from 0.0-1.0 meters. Is there a way to do that in Fluent? Perhaps an averaging method that smooths out the big spikes in dp caused by the air bubbles, or something similar?

    Thank you very much for your continued support!

    Best regards,

    Magnus

  • KremellaKremella Admin
    edited April 28

    Hello,

    Yeah, this might be an issue. Perhaps, it is quite possible that the individual spikes you are seeing are because of the interface location of your air bubbles.

    You might need to do some kind of averaging to smooth out these fluctuations.

    Are you able to verify if the results you are obtaining from Fluent are right? Or is this an attempt to verify the model results?

    Also, it seems like you are plotting dP-dY? Is this your parameter of interest? Or are you looking for grad(P)?

    Thank you.

    Best Regards,

    Karthik

  • maggakahnmaggakahn Member
    edited May 17

    Hello,

    I managed to find the solution to my problem. It turns out that i needed to set the operating density equal to the lightest phase in the simulation, or in my case 0 because the gaseous phase is modelled as compressible.

    Thank you for all the help.

    Best regards,

    Magnus



  • KremellaKremella Admin
    edited May 18

    Hello,

    Glad to know that you were able to resolve the issue. Please mark the most appropriate answer as 'Is Solution'. This discussion might help someone who might be encountering a similar issue.

    Good luck!

    Best,

    Karthik
