I am not able to apply the heat flux

ikramikram Member

Hello

I am not able to apply the heat flux on the edge inside the geometry. In order to get a continuous mesh through different layers, I made all layer in one part.

Comments

  • KremellaKremella Forum Coordinator
    edited July 9

    Is this a 2D or 3D simulation run? Did you pick the analysis type in WB as 2D or 3D?

    If this is 3D, you will only be able to select surfaces and prescribe the heat flux condition. Could you please check if you are able to pick a surface (and not an edge) for your boundary condition?

    Thanks.

  • ikramikram Member
    edited July 13

    this is a 2D analysis. I am still not able to apply the heat flux to the edges inside the geometry.

  • ikramikram Member
    edited July 13

    this is a 2D analysis. I am still not able to apply the heat flux to the edges inside the geometry.




  • RobRob UKForum Coordinator
    edited July 13

    You can only add a heat flux to an external wall boundary. For an internal wall you need to give it a thickness and then add a heat generation rate in W/m3

  • ikramikram Member
    edited July 13

    thanks for your help, I tried to apply the heat generation but still not working



  • RobRob UKForum Coordinator
    edited July 15

    Oops, thought you were using Fluent.

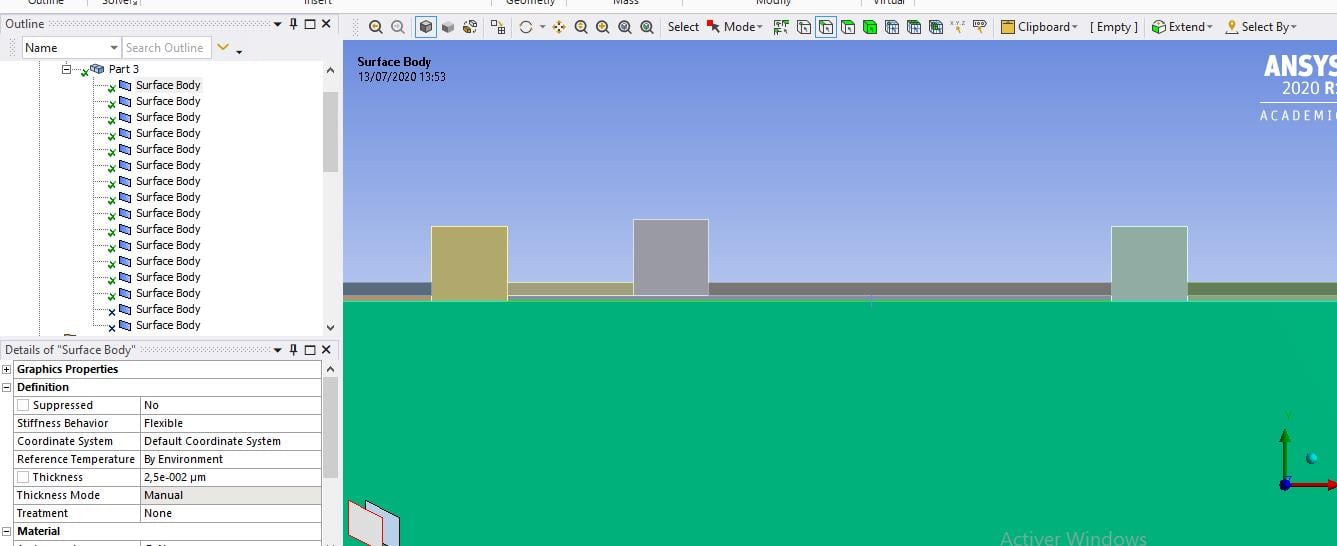

    If you click into the Geometry yellow box what can you select on the screen?
