What is the difference between bonded contact region and fixed joint

Hi,

I need to connect different parts for a project, and I noticed that there are 2 options. One is using the bonded contact region and one is using the fixed joint. Both can be used for surfaces so I am wondering what the exact difference is. I've done a test by connecting two parts and then calculating some modes (as I need to do modal analysis) and compared the connection methods to see if the result would be the same, but it is not.

I did find this through Ansys help:

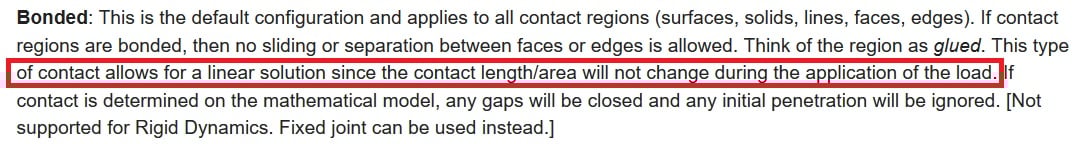

Bonded: This is the default configuration and applies to all contact regions (surfaces, solids, lines, faces, edges). If contact regions are bonded, then no sliding or separation between faces or edges is allowed. Think of the region as glued. This type of contact allows for a linear solution since the contact length/area will not change during the application of the load. If contact is determined on the mathematical model, any gaps will be closed and any initial penetration will be ignored. [Not supported for Rigid Dynamics. Fixed joint can be used instead.]

The last line indicates that both can be used for similar purpose but that bonded contact region is not supported for Rigid Dynamics.

Can someone explain to me what the exact difference is?

Comments

  • peteroznewmanpeteroznewman Member
    edited July 2018

    Hi Tim,

    For solid bodies that share a face and need to be "glued" together, there are ways to achieve that connection that is neither bonded contact nor fixed joint. You can use "Shared Topology" and have the elements on each side of the coincident faces share nodes. The benefit of this is a smaller model. You can get the same effect with Node Merge if each face has mesh controls to force the nodes to line up. Shared topology does this automatically.

    Imagine two tubes that are placed end-to-end and the annular faces need to be connected. Bonded contact puts elements between individual nodes over the whole face and creates a very localized connection. Say the other end of one tube is a fixed support and the far end of the other tube has a lateral load so the tube is a cantilevered beam and some bending occurs. In the annular ring, the force is transmitted locally all around the face. Depending on the contact formulation, you can get some penetration of nodes into the target surface. That doesn't happen with the shared topology method.

    A fixed joint creates a point at the centroid of the faces, and builds a spider of elements out to all the nodes on each face.  All the forces and moments go through that one point.  That is one of the benefits of using a joint, you can easily extract those quantities from your model. But there is no local node-to-node forces transferred around the annular face. The force has to go down the spider, though the point and back out on another spider to get to the other side.

    There is a danger when creating joints in Mechanical. Never use duplicate on a joint in the Outline to make another joint to use elsewhere in the model because the point that was created for the first joint is used in the new joint, rather that being updated to the location of the new faces. That means the invisible spiders that are created can go from one of the new faces, all the way over to a point on the other side of your model through a point, and then all the way back. You can imagine that a small tension on the tubes of the new joint will have a result that includes a HUGE moment, and a small force, when it should have a zero moment. This can cause the solver to have convergence difficulties. This kind of mistake cannot happen with bonded contact.

    When there is a significant gap between the faces that need to be "glued together", the fixed joint will always work by simply choosing the two faces, but bonded contact may not create any contact elements and the bodies will not be glued. The corrective action is to type in a Pinball radius to make sure that the contact elements are created. You should always insert the Contact Tool and Generate Initial Contact Status before you start the Solver. You don't need to to that for Fixed Joints.

    Regards,
    Peter

  • TimFethkeTimFethke Member
    edited July 2018

    Wow thanks Peter! This explanation is really elaborate. Did you find this from documentation or from experience with these connection methods? Escpecialy the explanation about the invisible spiders creating false moments sounds like an anecdote .

    Tim

  • peteroznewmanpeteroznewman Member
    edited July 2018

    Painful experience Tim; I still get burned occasionally : )

    I once used a joint to represent a long lead screw between two faces that were far apart. Got burned on that because of huge moments. The right way to have a simplified connection like that is a Spring element (could also use a Link180 element).  A spring has two coordinate systems, one on each end, so there are no moments!

    Regards,
    Peter

  • jj77jj77 Member
    edited May 2019

    As this is fluid related, move your post to the fluid dynamics section , as more people can help you there.

  • jdrozdowskijdrozdowski Member
    edited March 26

    Hello Peter.
    I've got three more question about bonded contact .

    1)
    (..) Bonded contact puts elements between individual nodes over the whole face and creates a very localized connection. (...)

    Could you please explain more specific what it actually mean ? How does actually bonded contact works ?
    I made a little test model with two plates that are separate bodys. I mesh them this way that on the connection there are no coincident nodes on purpose. I connect this two bodys by bonded contact. And.. it works. I thought that maybe bonded contact will influence mesh somehow but it looks that its not.
    If finite elements can be connected only in nodes how it is related to the bonded contact ?


    2) Is bonded contact adding any fake stiffness to the element ? Meaning is there any difference if I connect two plates by making one part and meshing together or connecting two separate bodys by bonded contact ?

    3) Question about info from help file.

    Does that mean that the results from non-linear analysis ( Large deformation on + NL material)  of model with bonded contact will be inncorrect ?




    Regards.



  • peteroznewmanpeteroznewman Member
    edited March 27

    Hello jdrozdowski,

    I like that you made a model specifically to learn how something as important as bonded contact works.

    One way to get a good understanding of what bonded contact is doing is to set the Formulation to MPC.

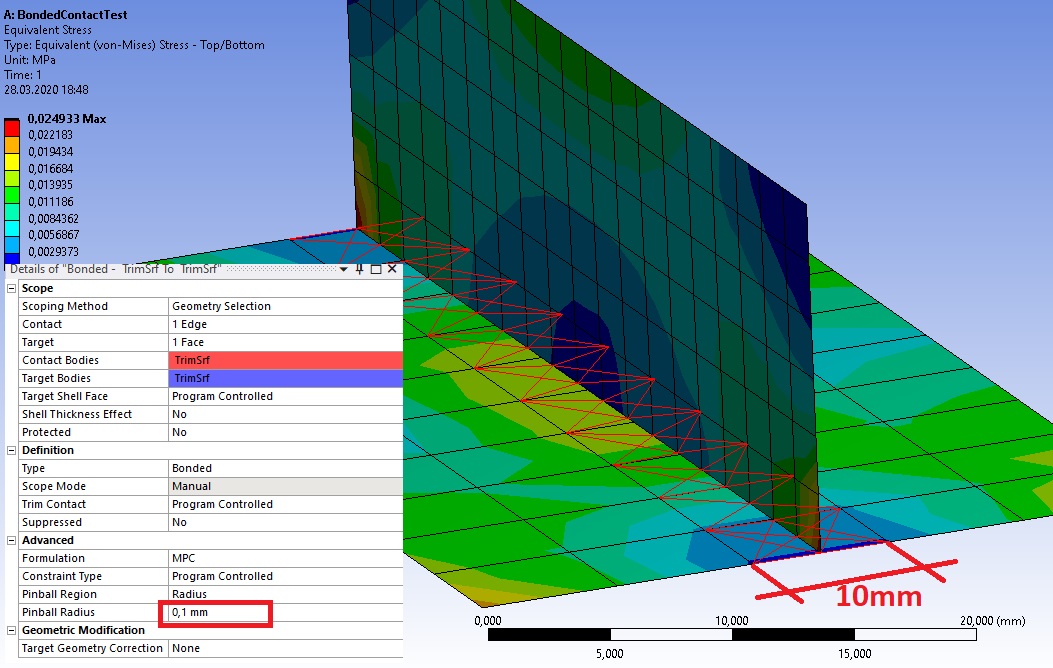

    When you do this, after you solve, click on the Solution Information folder and the main window switches from Graphics to Worksheet.  Click the tab on the main window back to Graphics and you will see a plot of the Constraint Equations (CE) that make up an MPC Bonded Contact. You can see and example of them in the image below where the flat side of a sheet metal box is bonded onto the U shaped part and some internal stiffeners.

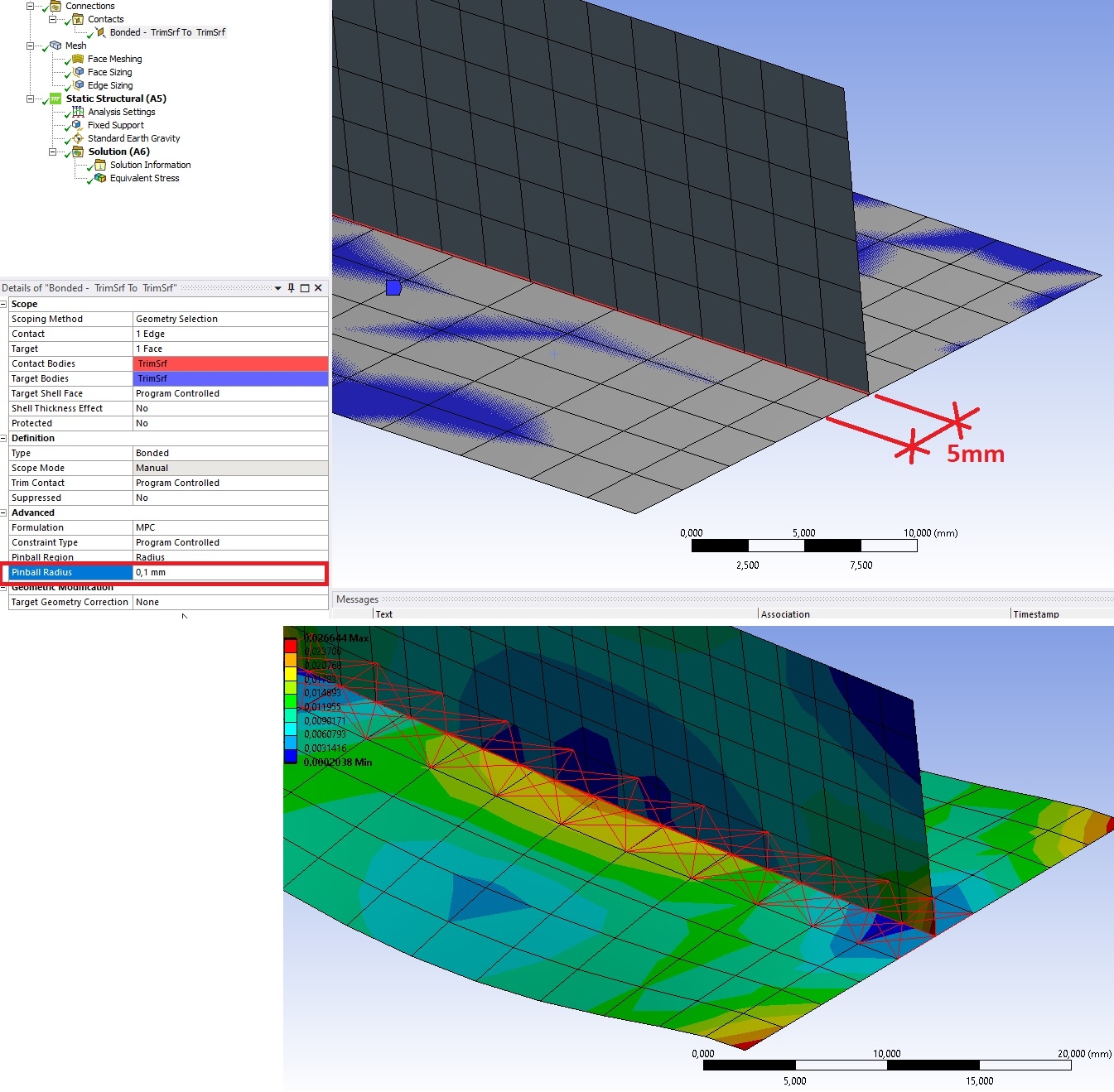

    Another important feature is Pinball Radius. On your test model, make the large flat plate have smaller elements, instead of 5 element across the width, make it 25 elements.  I don't know the width of that plate, but say it is 100 mm, so each element would be 4 mm wide.  Now try setting the Pinball radius to 5 mm and solve.  Then set it to 10 mm and solve.  Then set it to 25 mm and solve. Look at how the red CE elements reach further out across the plate. Please try this out and reply with some images. Thanks.

    Note that if you set the Pinball radius to <1 mm, the solution may fail because no nodes on the plate will be close enough to form a CE.

    2) There will be some difference between sharing nodes along an intersection line and using bonded contact. Large increases in stiffness is not a big problem with Bonded Contact, it is a big problem when a Remote Displacement or Joint is used with the Behavior set to Rigid and the scope is a large face.

    3) Bonded contact can be used in Large Deflection nonlinear analysis where large angles of rotation are present. Bonded contact should be avoided if material plasticity is present in the area of the bonded contact.  The help explains that you can have a Linear Model, which solves fast, and also use Bonded Contact.  That is not true if you use Frictional Contact.

    Regards,
    Peter

  • jdrozdowskijdrozdowski Member
    edited March 28

    Hello. Thank you for comprehensive answer. I made the test that you described. If i understand well red lines represent constraint equation which are connecting nodes that are inside pinball radius region? But they are NOT rigid body elements, right ?

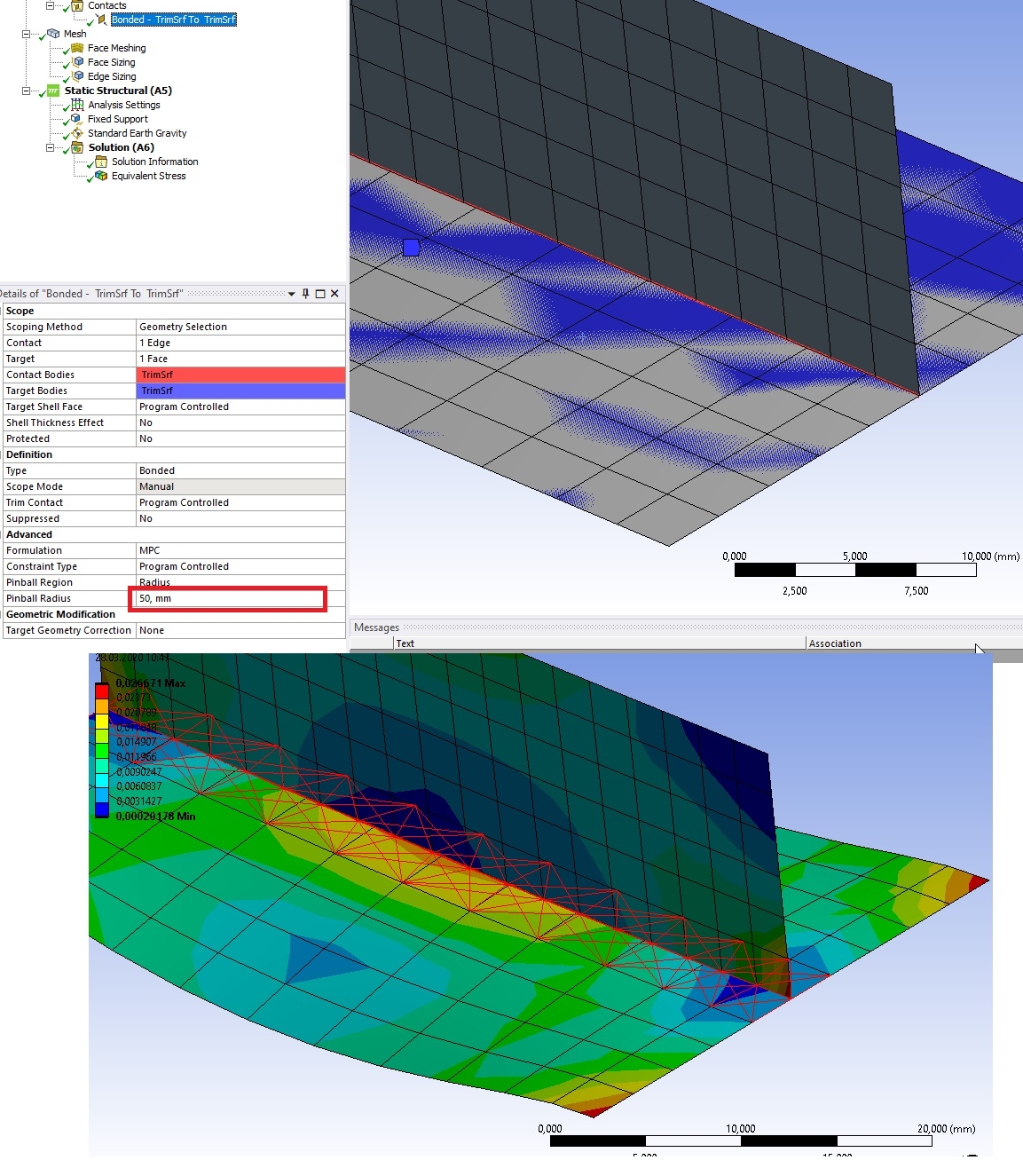

    I made some tries with different pinball radius but nothing changing. Why is that ? Please look at the picture below there is no difference between 0,1mm radius and 50mm radius.




    The red lines are only visible with MPC formulation. And what about other formulation ? What they are doing with nodes ? If I leave formulation as Program controlled there is no red lines so I assume that MPC formulation is not the default one.

  • peteroznewmanpeteroznewman Member
    edited March 28

    Hello jdrozdowski,

    Thank you for doing the test!  I described what I expected to happen, based on descriptions in the ANSYS Help system like this...

    so it is interesting that it did not work the way I expected.

    From your test, my new understanding is that there must be an algorithm that decides when a node has "enough" connections and stops. I don't know for sure.

    One part of the test, which is not important to do as it only can cause a problem, was to set the Pinball radius small, which you did, but that only works if there are an odd number of elements (like 11) across the width, which leaves no nodes at the centerline and makes a gap between the nodes on the vertical and nodes on the horizontal. You have 10 elements across the width, which create nodes along the centerline and no gap.

    These MPC Constraint Equations are described in Chapter 15.14 of the Theory Manual of the Help system, which I don't find that helpful. MPC stands for Multi Point Constraint. This creates a set of equations, using Lagrange Multipliers, to enforce a set of requirements on the kinematics of the set of nodes on either side of a contact. MPC is similar to RBE3 elements that distribute a force to a set of nodes without adding any stiffness. This is in stark contrast to the CERIG elements that define a rigid region which is used in a Remote Displacement or a Joint when the Behavior is set to Rigid. This does add stiffness to the model (NASTRAN calls it an RBE2 element).  Remote Displacements and Joints can also have the Behavior set to Deformable, then it uses RBE3 elements that don't add stiffness.

    The default Formulation for Bonded Contact is Augmented Lagrange according to the Help system.  The reason I like MPC is because I can do a visual check of where the contact may be missing in some areas and I can increase my pinball region to cause it to connect.

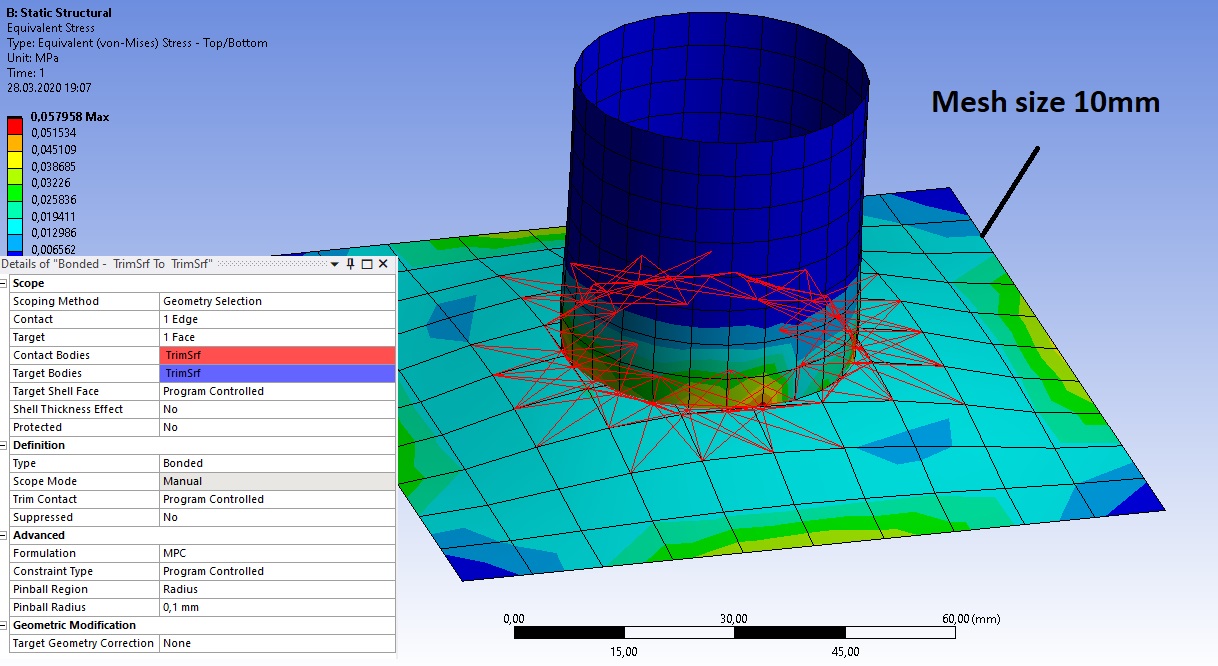

    Here is another test you can try if you want. Make a cylindrical sheet body at the center of a flat  square plate. This will create conditions where there is a large variation on the distance between nodes on the contact side and nodes on the target side of the contact. Play around with element size on each body.  Flip the Target-Contact side of the contact by a right click on the contact. Try a number of different Pinball Radius values to see if you can get an intermittent bond around the circle.

  • jdrozdowskijdrozdowski Member
    edited March 28

    Hello. Thank you very much for all helpful information that you provide.
    I made both test.
    Somehow in both cases it is just not reacting for changing the pinball radius.

  • peteroznewmanpeteroznewman Member
    edited March 28

    Great, thanks for the test results. I don't know why the Pinball radius is being ignored.

    If in the cylinder on plate model, you go back to SpaceClaim and on the Workbench tab, click the Share Button, the circle will imprint on the plate, then you can go back to Mechancial, delete the contact and see the benefits of Shared Topology, which I prefer over Bonded Contact.


    For others reading, here is another good discussion about this topic.

  • AbelBerhanemeskelAbelBerhanemeskel Addis AbabaMember
    edited May 27

    Hi peteroznewman,

    Can you please explain why bonded contacts are not desired when plasticity is present in the bonded region?

    Thanks.

  • peteroznewmanpeteroznewman Member
    edited May 27

    Because bonded contact uses equations to connect nodes together, but those equations don't know about the plasticity material model.

    The elements that have the plasticity material model must be free to follow that model without extra equations hampering them.

  • AbelBerhanemeskelAbelBerhanemeskel Addis AbabaMember
    edited May 28
    Thanks peteroznewman for replying to two of my posts quickly. I will go back to using shared topology. Do you have any tips on how to get pure hex mesh with shared topology? Because I been having problem getting multi zone to mesh.
  • AndreytestonAndreyteston BrazilMember
    edited June 6

    Hello, members!

    I have created this topic here.

    I wonder if any member could help me.

    Regards.
