July 2, 2019 at 9:44 pmGoddySubscriber

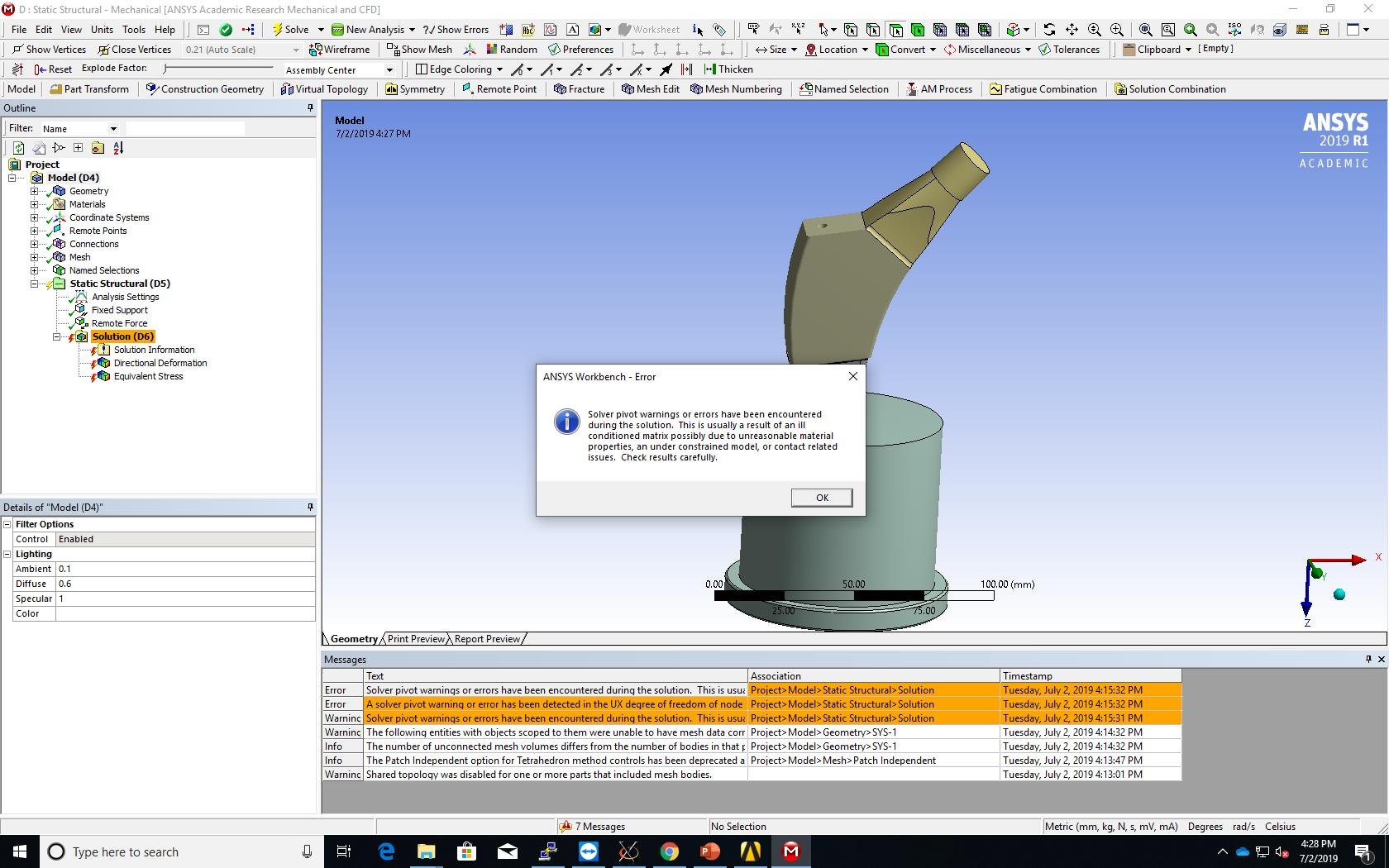

Hi everyone, I am trying to do an analysis and I am getting several errors related to solver pilot error and mesh.
This analysis is a validation run after doing lattice topology optimization. So I think a lot of the issues are resulting from the nature of the new geometry. The pictures which follow this message have some of the error messages. The file is too large to upload so it can be accessed via this google drive link https://drive.google.com/file/d/1h9yxYkKnx0-XKoRuNeXwf5Mc_N1G84f-/view?usp=drive_web.
Any advice and instructions how to solve this will be appreciated
July 3, 2019 at 12:54 am
July 3, 2019 at 3:03 amGoddySubscriber
Sorry about that. Try again now hopefully you have access
July 3, 2019 at 9:29 amjj77Subscriber
It is the lattice part - the lattice mesh is not really done never used lattices so not sure - things inside there are not really connected as it is.
(try an element size that is close to the diameter of the lattice say 0.25 mm)
For more help:
August 1, 2019 at 6:13 pmGoddySubscriber
Thanks for all the responses. I tried doing the process all over from the start and I followed the instructions on the PADT blog. And I had some issues, first when i try to clean up the geometry is space claim, the "use density attributes" check box doesn't come up, also if I ignore that and try to click on the green tick to complete the shelling of the selected geometry, it doesn't work. I don't know exactly why that is happening.
These are minute issues but without resolving them i can't move forward. I am using ANSYS 2019 R1. Also after the lattice optimization doing an FEA validation test is very computational expensive so I thought I could use material designer to get the homogenized mechanical properties of the lattice region and use that in a fully solid body; but trying to copy the geometry from space claim to material designer I get a unit error saying something like material designer works with micro units and the geometry was in standard units- this is despite the fact that the units in space claim when i try to clean it up are showing micrometers and not millimeters.
Any help or suggestions will be appreciated. Attached to this is the archive file
- You must be logged in to reply to this topic.
