June 7, 2018 at 1:50 pmNaiaraSubscriber

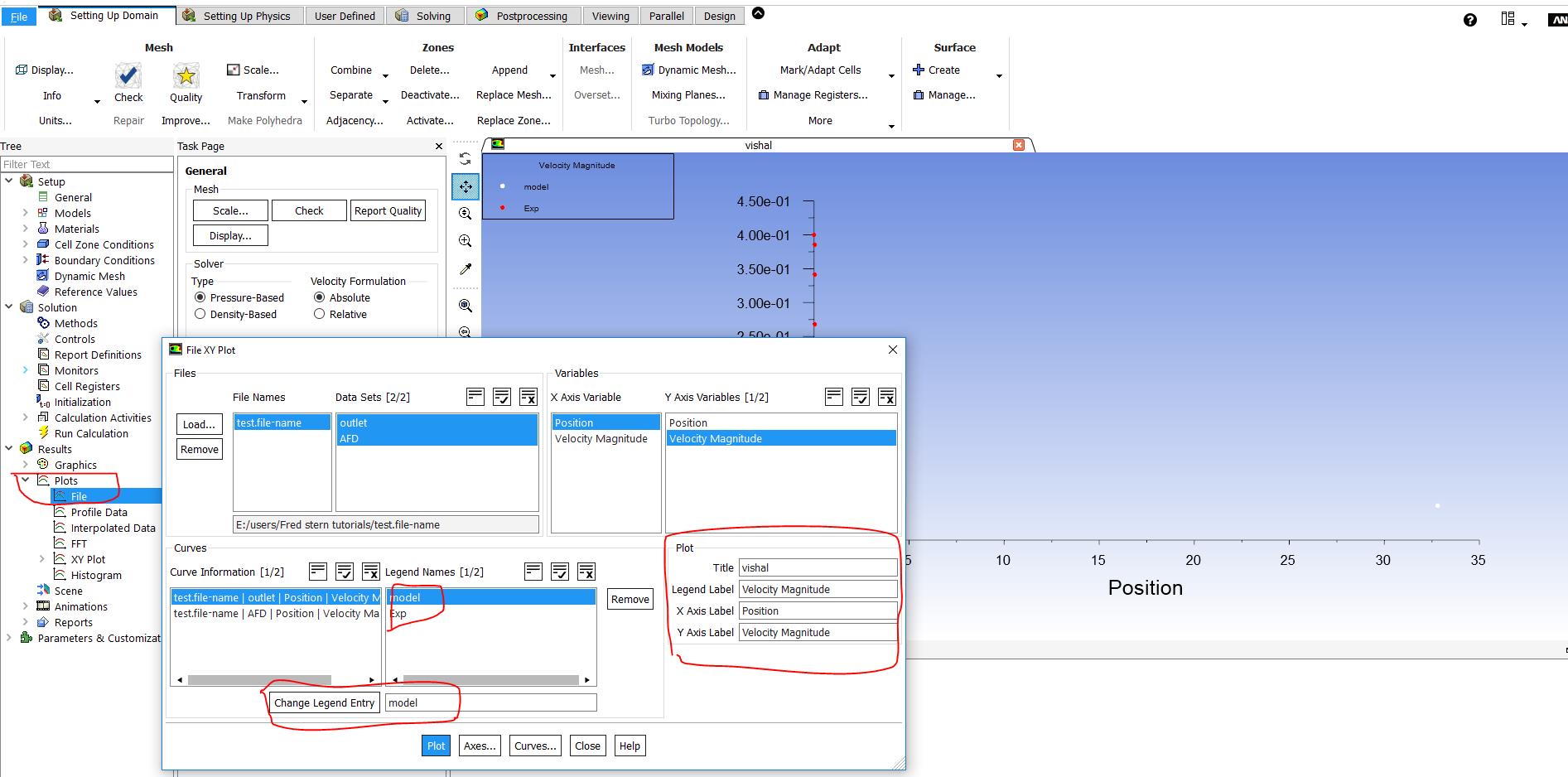

I am trying to plot in FLUENT experimental data with model data and I am having problems to define the correct label name and axis units.
I was able to obtain the attached both XY plots but neither of them is what I was lookin for.
In the first one, X axis units are right (mm) but I would like to change thw title of the legend to z=3mm and I am not able to do it. When I write the plot, I am able to change this issu and them import a file a draw XY file but X axix units are m and I am not able to change to mm.
June 8, 2018 at 8:33 am
March 4, 2020 at 6:39 amansysuser2020Subscriber
can you write how to export XYplot from Text User Interface ?
